Fiberglass 510 Modular Dog Cage System

• Modular Dog Cage
• Sturdier, Longer Lasting, Durability
• Strong and Secure Door Locking System
• A Complete Working Station
• For Veterinary Clinic, Boarding Kennel & Grooming Salon
• Power Sockets, Drainage System, Show hose



Easer to Clean, Less Labor Cost
5cm big radius round corners and fluid retaining lip make clean-up easier and allows for a much cleaner kennel environment.
Do not need to move the waste tray out to clean in the traditional way just spraying water inside and let waste water run out from drainage, the cleaning works have not been so easy before.

Sturdier, Longer Lasting, Durability
Constructed of 4-5mm thick high strength fiberglass material
The same thickness as Yacht body ensures very long lasting daily usage.
Reinforcing strips have been added on each side, from the smooth finished mold, to ensure unbeatable strength.

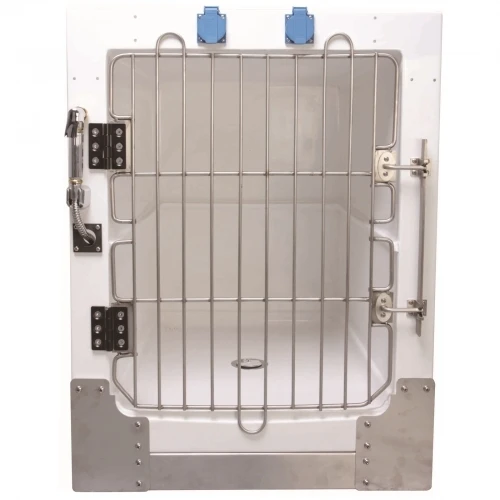

Strong and Secure Door Locking System
Comes standard with dual point self-latching doors, the tiny tolerance between the vertical rod and latch opening means extremely quiet even dogs’ paw pad against the door.
8mm diameter frame, 6mm vertical rods and 8mm cross members; all of them create a safe bank of cages.

More Functional, A Complete Working Station

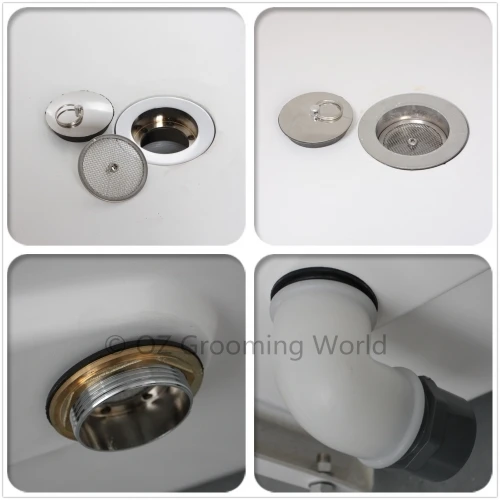

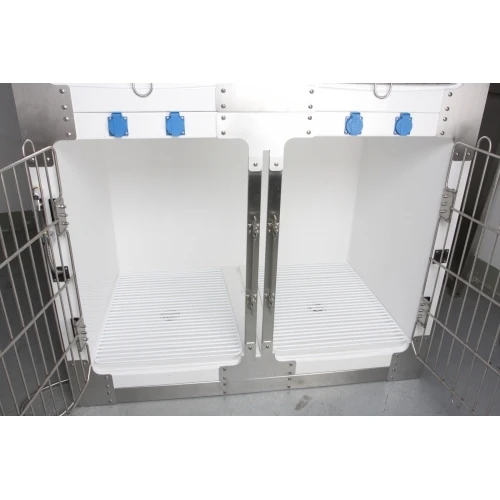

Pre-installed spray head and hose, drainage with filter and power supply socket, make it not merely a cage but a multi-functional working station.
Anesthesia machine, oxygen machine, heating panel, etc; all electric appliance could be plugged into the power sockets and hung up to horizontal rods in the middle of the door.
Could also attach a curtain onto the front door by the U shape bends to keep out of sunshine and turn it into a wind shelter.

More Versatile for Both Internal Room and Outside Combination
3 different sizes present several configurations, 2L+4M+5S, 1L+4M, 2L+10S, etc.
Each cage could be divided into two compartments, upside and downside, thus the double-deck cage could contain more small breeds or puppies when needed.
Also special resting shelves available for cats and small animals.

Ample 2 customizing Choice
Floor grate, waste tray, middle grid as central divider, 1/4 grid rest shelf, transparent door with thermometer and hygrometer, cloth curtain, roller bases for each size, wire pipe and water pipe in different length, elbow and T connectors, etc.
All the extra accessories make the cage even more functional and useful for applications.
Available in Almond and White styles.



Standard Modular is made of:

• 5 x small cages ideal for cats, toy dog breeds & rabbits etc.
• 4 x medium cages ideals for small and medium size dogs.
• 2 x large cages with cage divides ideal for two medium size breeds or with the divider pulled out for one large dog breed.

* You can add or take away cages to build a block of cages to suite your requirements.



Delivery Charge

Contact us for postage quote, customer can pick up or arrange own freight company.



Size Chart

	Stand (cm)	Net Weight
KA510S	52W x 48D x 60H	18kg
KA510M	65W x 69D x 79H	30kg
KA510L	130W x 69D x 94H	70kg



For large product, depends on your address (residential or commercial) we will choose the suitable shipping carrier eg. TNT or Toll.
An extra tail gate service fee will be charged if there is no forklift onsite.
For more information please check bottom of our website: INFORMATION—-Check Out & Delivery



​We can customize any colour to suit your need, MOQ required, please contact us.
